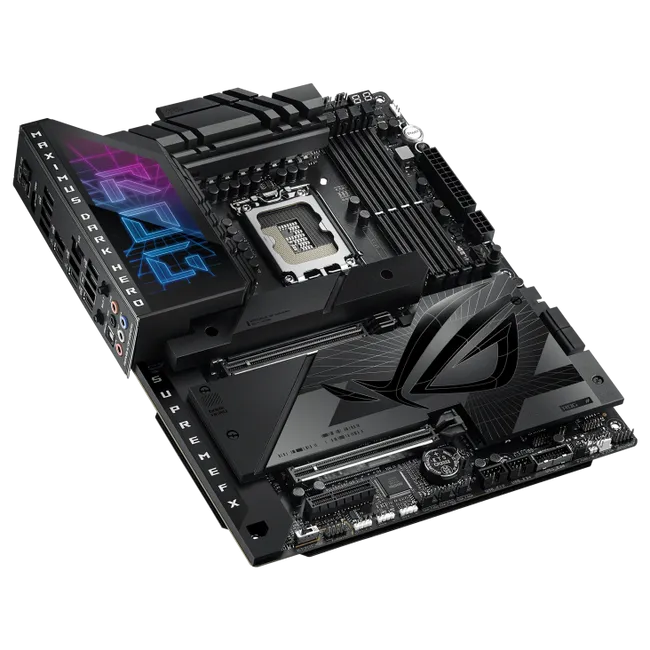

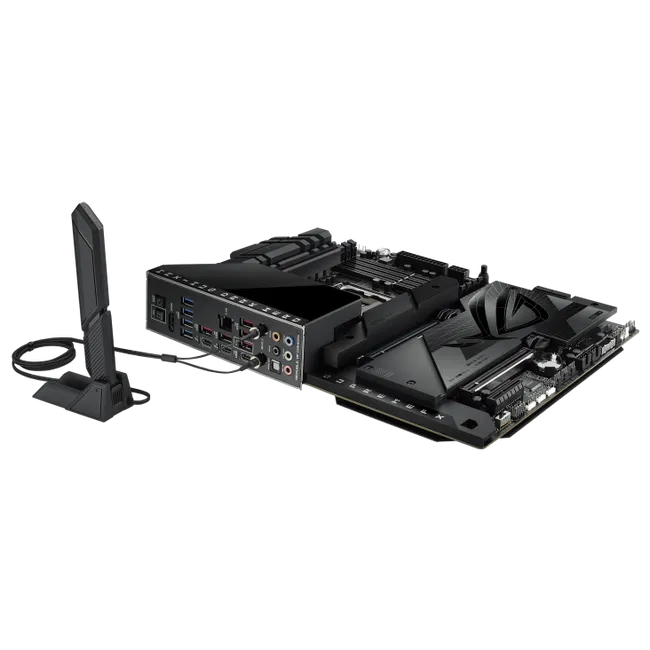

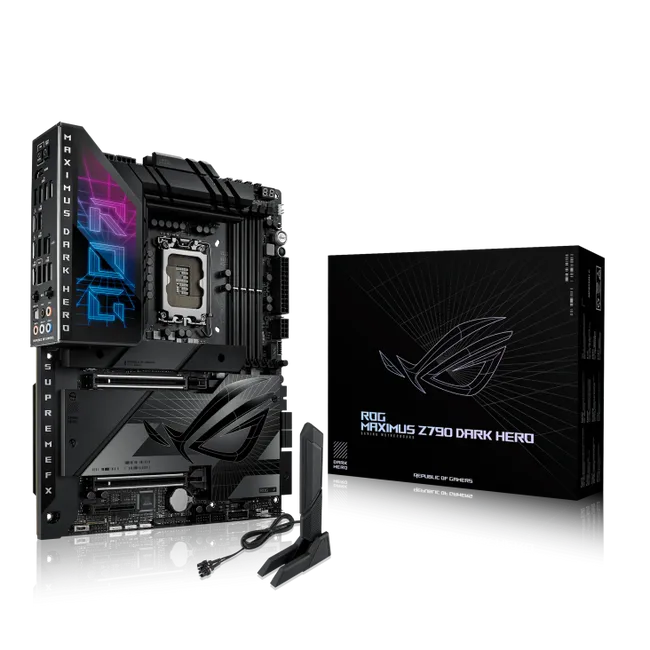

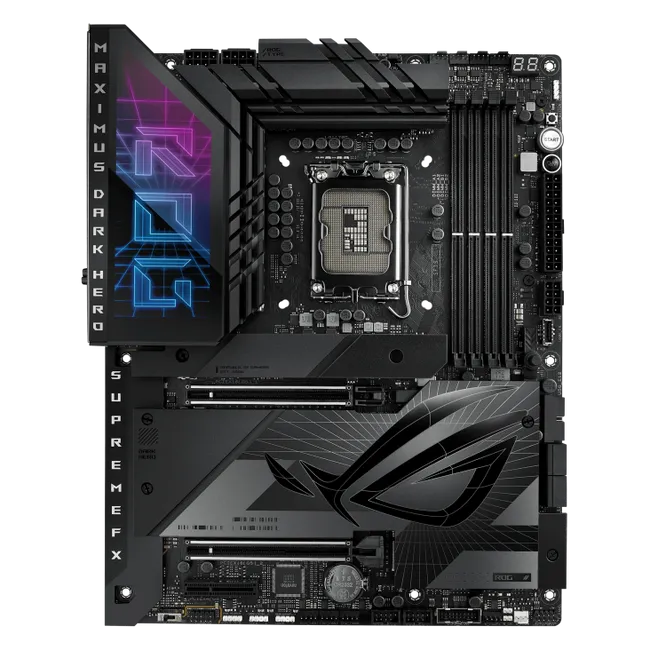

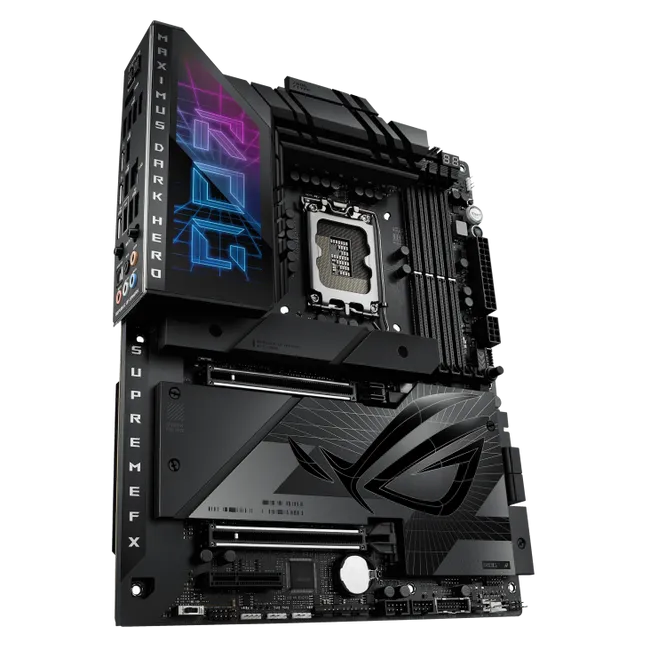

ASUS ROG MAXIMUS Z790 DARK HERO Motherboard – Supports Intel® 14th/13th/12th Gen CPUs, DDR5 up to 192GB, Dual PCIe 5.0, WiFi 7 & Bluetooth 5.4, Polymo RGB Lighting, SupremeFX 7.1 Audio for Gaming & AI
ASUS ROG MAXIMUS Z790 DARK HERO Motherboard – Supports Intel® 14th/13th/12th Gen CPUs, DDR5 up to 192GB, Dual PCIe 5.0, WiFi 7 & Bluetooth 5.4, Polymo RGB Lighting, SupremeFX 7.1 Audio for Gaming & AI
| Category | Specifications |
|---|---|
| CPU | Intel® Socket LGA1700 supports Intel® Core™ 14th/13th/12th Gen, Pentium® Gold & Celeron® processors |
| Chipset | Intel® Z790 |
| Memory | 4 x DDR5 DIMM slots, up to 192GB, speeds up to 8000+ (OC), supports AEMP II, XMP, and DIMM Flex |
| Graphics | 1 x HDMI 2.1 (4K@60Hz), 2 x Thunderbolt™ 4 (USB-C) with DisplayPort video output |
| Expansion Slots | 2 x PCIe 5.0 x16 (x16 or x8/x8), 1 x PCIe 4.0 x4 |
| Storage | 5 x M.2 slots (PCIe 5.0/4.0 x4), 4 x SATA 6Gb/s |
| Networking | 1 x Intel® 2.5Gb Ethernet, WiFi 7 (2x2, 2.4/5/6GHz), Bluetooth® 5.4 |
| Audio | ROG SupremeFX 7.1 ALC4082 codec, ESS® ES9218 Quad DAC, gold-plated jacks, optical S/PDIF |
| Rear USB Ports | 2 x Thunderbolt™ 4 (USB-C), 6 x USB 10Gbps (5 x Type-A, 1 x USB-C), 4 x USB 5Gbps |
| Front USB Ports | 1 x USB 20Gbps (USB-C, supports up to 60W fast charging), 2 x USB 5Gbps headers, 2 x USB 2.0 headers |
| Cooling | VRM metal heatsinks, M.2 heatsinks with backplates, 8 fan headers, support for pumps & water cooling |
| RGB Lighting | AURA Sync, Polymo Lighting on I/O shroud |
| Special Features | BIOS FlashBack™, Clear CMOS, Q-Design (Q-Latch, Q-Release, Q-LED), Extreme OC Kit |
| Audio Enhancements | Premium audio capacitors, high-quality shielding, advanced noise isolation techniques |
| Software | Armoury Crate, AIDA64 Extreme, AI Suite 3, Sonic Studio, Aura Creator, Intel® Unison™, WinRAR trial |
| Dimensions | ATX form factor (30.5 cm x 24.4 cm) |
| OS Compatibility | Windows® 11, Windows® 10 64-bit |
- Categories:
- Motherboard
- Brand:
- Asus
- SKU:
- MB-AS-Z790RGMXDHR
- Color:
- Black
Receive your order within 2-3 business days.
Unleash the ultimate performance with the ASUS ROG MAXIMUS Z790 DARK HERO motherboard, engineered for gamers and creators. Supporting Intel® Core™ 14th, 13th, and 12th Gen processors, it features blazing-fast DDR5 memory up to 8000+ (OC) and dual PCIe 5.0 x16 slots for top-tier graphics. Stay ahead with next-gen connectivity, including WiFi 7, Thunderbolt 4, and up to five PCIe NVMe M.2 slots for lightning-fast storage. Its stealthy design showcases Polymo RGB lighting on the I/O shroud for a customizable look. Built for extreme overclocking, it boasts premium thermal solutions with metal VRM and M.2 heatsinks. Enjoy immersive 7.1 surround sound via SupremeFX and an ESS Quad DAC, while a USB-C port with up to 60W Power Delivery ensures fast device charging. The ROG MAXIMUS Z790 DARK HERO is your gateway to future-proof gaming and advanced AI applications with rock-solid stability and unmatched style.
